Dincel Civil Solutions offers DESIGN & SUPPLY turnkey solutions for Civil structural elements, with varying service offers.
Our Design, Supply and Install offer is a complete package which can deliver savings on construction time, materials and labour.
The Dincel Civil Solutions business unit, uses the same products manufactured by its sister company Dincel Structural Walling to provide various Design, Supply & Install packaged solutions specific to the civil and infrastructure market segment.
Service offers can include:
- Complete Design, Supply and Install packages to suits your projects' needs.
- Structural Design, Inspections & Certifications for new & alternate solutions,
- Complete structural packages, including excavation, backfill, drainage and waterproof solutions; or
- Supply only of Dincel component & Site Supervision packages.
Design
Structural Design, Inspections and Certifications (by Dincel or other Engineers) for new and alternate civil solutions.
Dincel Civil Solutions can offer full structural design services for new projects or support to existing structural engineering firms on alternative design options to standard blockwork, in situ concrete, precast, etc, for projects in the civil and infrastructure market.

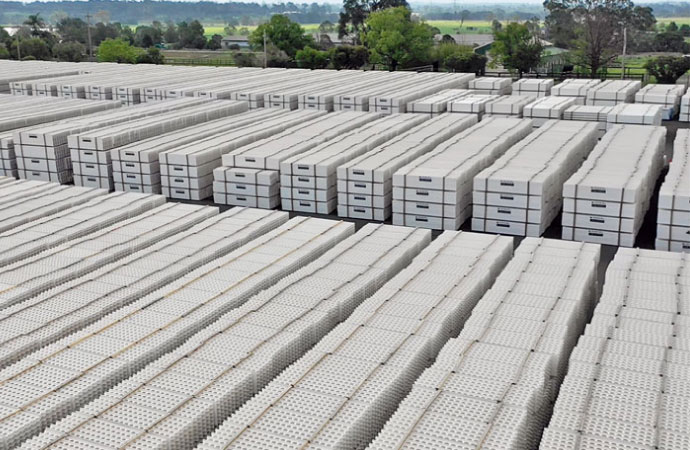

Supply
Supply only of Dincel component (for projects already engineered). Site Supervision packages for initial orders.
As part of our supply service, Dincel Civil Solutions can manage scheduling of various project components including:
- Product Deliveries: Dincel profiles and other products such as reo and concrete
- Plant & Equipment
- Trades/Labour
- Works
The Dincel Advantage
Faster & Easier
Dincel Structural Walls consist of an internationally patented snap lock joint which connects the Dincel panels for fast and easy installation. Dincel panels allow for greater safety and manoeuvrability on-site. Dincel is lightweight, making it easy for one man to carry the product across a construction site if needed. Dincel panels can be installed relatively quickly, with two men being able to comfortably install 25m² of panels per hour.
Cheaper & Stronger
Dincel permanent formwork achieves greater concrete strength by minimising moisture loss throughout the curing process. The permanent polymer skin also prevents moisture from entering the wall and therefore reduces the chance of corrosion to steel reinforcement and concrete cancer. In addition, Dincel walls can be designed to contain less steel reinforcement than conventional concrete walls, resulting in less material, labour and waste. These can all be translated to real financial savings.
Dincel formwork benefits
- Fire tested and NCC compliant
- Waterproof
- Easy install connections
- Crack control steel reinforcement not required
- Acoustic tested
- AS3600 compliant
- Termite, rot & mildew proof
- Light weight panels
Find out more
110mm Profile
- Ideal for: Small infill structures
- Replacement for: Brick, blockwork and AAC panels
- Width: 333mm
- Lengths: 2850mm | 3000mm | 4000mm | Custom*
- *Custom made profiles in lengths between 1800mm – 7950mm
110mm Accessories
Only available in stock lengths of 3000mm.
-

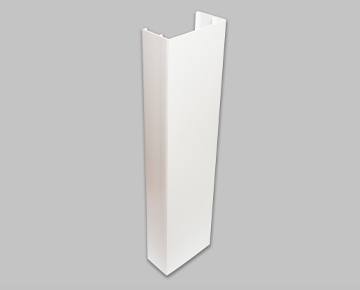

• End Cap (110P-EC)
End Cap (110P-EC)Used to finish off the end of the wall installed vertically. The 110P-EC extends the overall wall length of the wall by 55.55mm.
-

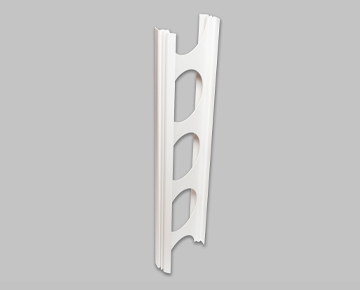

• Joiner (110P-J)
Joiner (110P-J)Used to join the 110 main profiles to each other through their male clip.
-

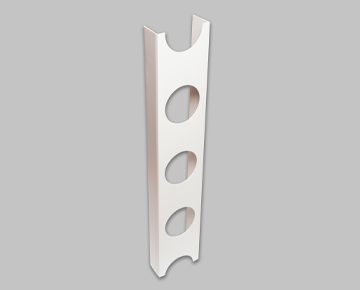

• Guide (110P-G)
Guide (110P-G)A guide used to hold the bottom of walls during concrete pouring. The guide is secured to the slab or footing with concrete nails.
-

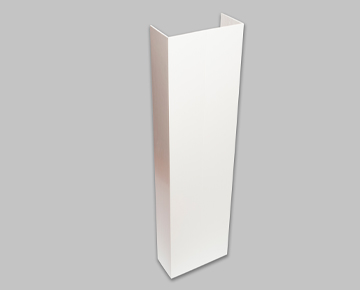

• Top Cap (110P-TC)
Top Cap (110P-TC)A capping that can be used on top or end of a wall installed vertically or horizontally.
-

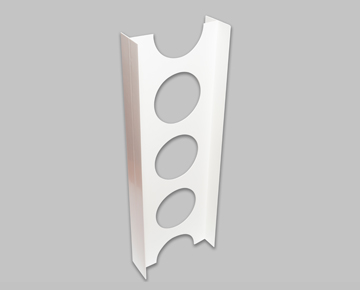

• Window Sill/Wall Splicer (110P-WS)
Window Sill/Wall Splicer (110P-WS)Can be used either as a sill and head for the windows, or a wall splicer to extend the profiles installed in vertical or horizontal directions.
-

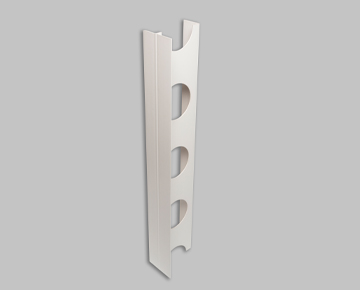

• Edge Guide (110P-EG)
Edge Guide (110P-EG)Used at floor or footing slab edge to start the wall over, it can also be used at window jambs, sill and head.
-

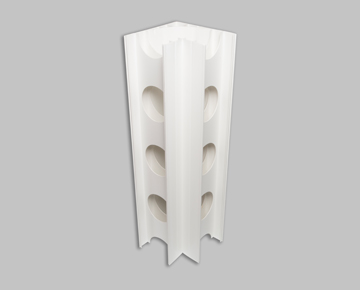

• Corner Profile (110P-3)
Corner Profile (110P-3)Achieves 90 degree wall corner.
155mm Profile
- Ideal for: General Concrete structures, Culverts, Retaining Walls, OSD tanks, channels & pits, etc
- Replacement for: 190mm Blockwork, Precast, in situ Concrete Walls
- Width: 333mm
- Lengths: 2850mm | 3000mm | Custom*
- *Custom made profiles in lengths between 1800mm – 7950mm
155mm Accessories
Only available in stock lengths of 3000mm.
-
• End Cap (155P-EC)
End Cap (155P-EC)Used to finish off the end of the wall installed vertically. The 155P-EC extends the overall wall length of the wall by 75mm.
-
• Joiner (155P-J)
Joiner (155P-J)Used to join the 155 main profiles to eachother through their male clip.
-

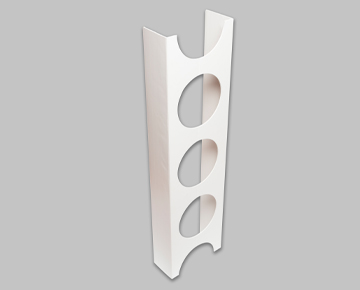

• Guide (155P-G)
Guide (155P-G)A guide used to hold the bottom of walls during concrete pouring. The guide is secured to the slab or footing with concrete nails.
-
• Top Cap (155P-TC)
Top Cap (155P-TC)A capping that can be used on top or end of a wall installed vertically or horizontally.
-

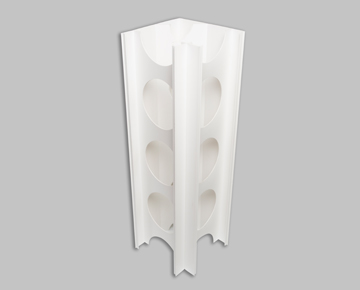

• Corner Profile (155P-3)
Corner Profile (155P-3)Achieves 90 degree wall corner.
-

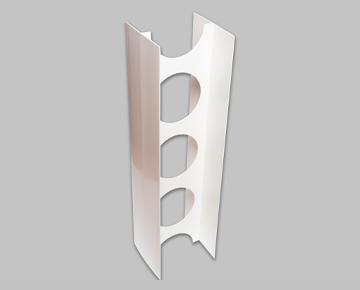

• Window Sill/Wall Splicer (155P-WS)
Window Sill/Wall Splicer (155P-WS)Can be used either as a sill and head for the windows, or a wall splicer to extend the profiles installed in vertical or horizontal directions.
-

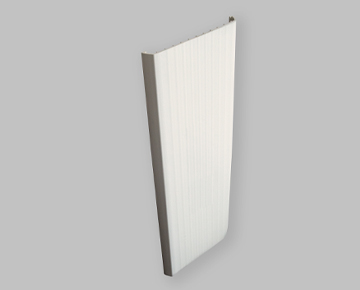

• Stop End (155P-SE)
Stop End (155P-SE)The Stop End is used to stop concrete pouring at the male end of 155P1 Dincel main profile by sliding 155SE within the grooves of main profile P1 provided, no screws are required, off cuts can be used.
200mm Profile
- Ideal for: Ideal for: OSD tanks, Retaining Walls ,General Concrete structures, Culverts, channels & pits, etc
- Replacement for: 190mm Blockwork, Precast, in situ Concrete Walls
- Width: 333mm
- Lengths: 2850mm | 3000mmm | 3150mm | 3300mm | 3450mm | 3600mm | Custom*
- *Custom made profiles in lengths between 1800mm – 7950mm
200mm Accessories
Only available in stock lengths of 3600mm.
-
• Spacer 50mm (200P-2)
Spacer 50mm (200P-2)Allows walls to be built with 55.5mm increments. Note; alternatively the wall opening sizes can be reduced by adding 200P-2 profiles (when six 200P-2 profiles are connected to eachother, it equals one 200P-1).
-
• End Cap (200P-EC)
End Cap (200P-EC)Used to finish off the end of the wall installed vertically. The 200P-EC extends the overall wall length of the wall by 55.55mm.
-
• Joiner (200P-J)
Joiner (200P-J)Used to join the 200 main profiles to eachother through their male clip.
-

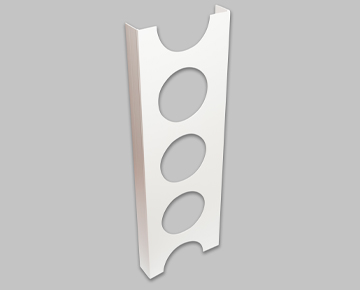

• Guide (200P-G)
Guide (200P-G)A guide used to hold the bottom of walls during concrete pouring. The guide is secured to the slab or footing with concrete nails. The use of this guide is not recommended where waterstops are used for waterproofing purposes.
-
• Top Cap (200P-TC)
Top Cap (200P-TC)A capping that can be used on top or end of a wall installed vertically or horizontally.
-
• Window Sill/Wall Splicer (200P-WS)
Window Sill/Wall Splicer (200P-WS)Can be used either as a sill and head for the windows, or a wall splicer to extend the profiles installed in vertical or horizontal directions.
-

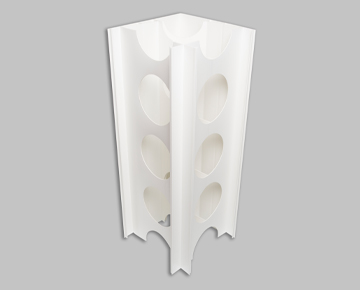

• Corner Profile (200P-3)
Corner Profile (200P-3)Achieves 90 degree wall corner.
-
• Stop End (200P-SE)
Stop End (200P-SE)The Stop End is used to stop concrete pouring at the male end of 200P1 Dincel main profile by sliding 200SE within the grooves of main profile P1 provided, no screws are required, off cuts can be used.
-

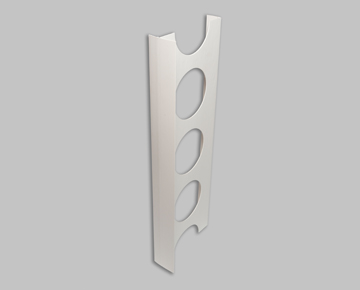

• Edge Guide (200P-EG)
Edge Guide (200P-EG)Used at floor or footing slab edge to start the wall over, it can also be used at window jambs, sill and head.
-

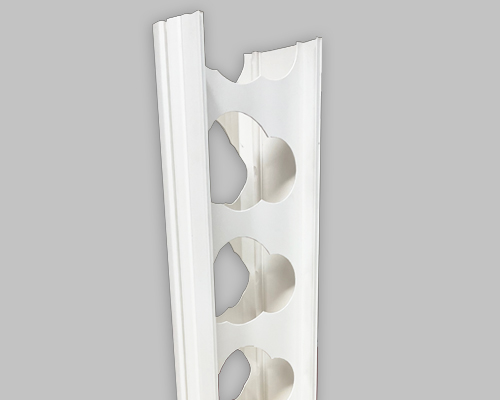

• Angle Profile (200P-4)
Angle Profile (200P-4)Allows corners to be built with 15 degree increments. The use of the product also allows circular formed or waved walls.
-

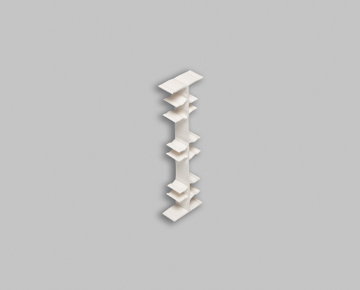

• Vertical Reo Clip (200P-VRC)
Vertical Reo Clip (200P-VRC)Assist with the positioning of vertical reinforcement within the Dincel panels, accommodating a range of standard steel thicknesses. Available in packs of 100.
-

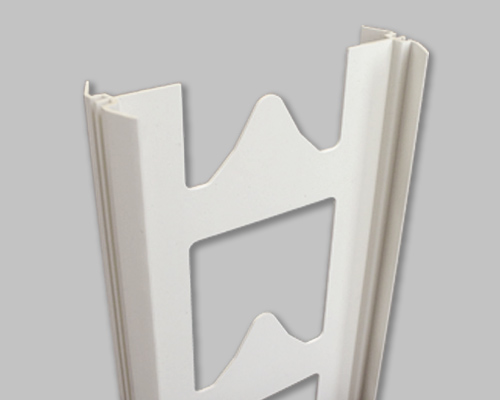

• Horizontal Reo Clip (200P-HRC)
Horizontal Reo Clip (200P-HRC)Horizontal steel bar locator for walls longer than 3m in length to hold double horizontal bars at each face of Dincel panel. Recommended at every 10th Dincel Panel (i.e. 3.3m).
-

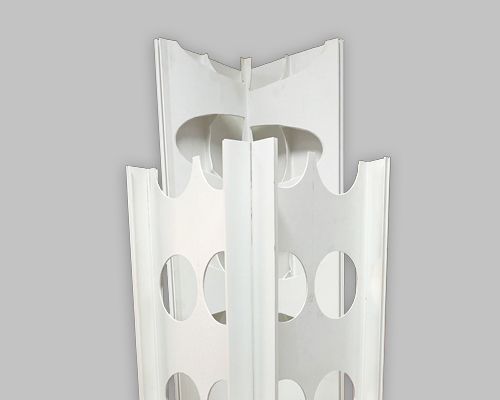

• Corner Profile (200P-5)
Corner Profile (200P-5)A two-piece wall corner with removable cover.
275mm Profile
- Ideal for: Most earth retaining / submerged structural elements including but not limited to: Earth Reinforced wall, Large Culverts, Large retaining walls (Single/ Dual skin & Counterfort), Submerged waterproof structures, etc
- Replacement for: 290mm Blockwork, Precast, in situ Concrete Walls, Most Waterproof membranes
- Width: 275mm
- Lengths: 3000mm | 3600mmm | Custom*
- *Custom made profiles in lengths between 1800mm – 6525mm.
275mm Accessories
Only available in stock lengths of 3600mm.
-
• Top Cap (275P-TC)
Top Cap (275P-TC)The split 275P-TC is secured to the slab or footing on either side of the 275P-1 main panel to hold the bottom of the walls during concrete pour. 275P-TC is not recommended underneath the 275 Dincel walls.
-
• End Cap (275P-EC)
End Cap (275P-EC)Used to finish off the end of the wall installed vertically.
-

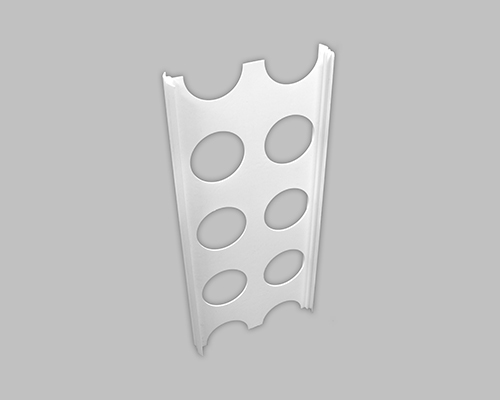

• Joiner (275P-J)
Joiner (275P-J)The 275P-J profile is used to join 275P-1 main profiles to each other through their male clips.
-

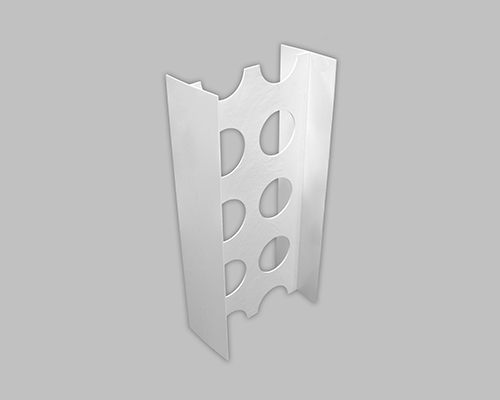

• Window Sill/Wall Splicer (275P-WS)
Window Sill/Wall Splicer (275P-WS)The 275-WS is used as a wall splicer to extend the profiles installed in vertical or horizontal directions.
-

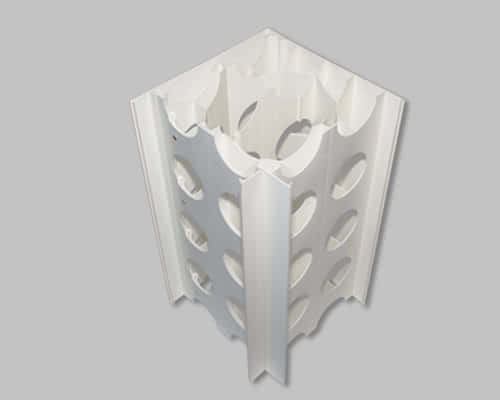

• Corner Profile (275P-3)
Corner Profile (275P-3)Achieves 90 degree wall corner. This profile comes in 3 pieces which clip and screw together to create the corner module on site.
-
• Angle Profile (275P-4)
Angle Profile (275P-4)The 275P-4 profile allows corners to be built with 15 degree increments. The use of the product allows circular formed or waved shaped walls.
